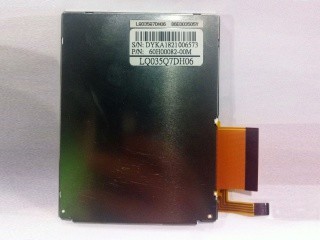

LQ035Q7DH06 3.5 INCH SHARP TFT-LCD 240(RGB)×320, QVGA, 113PPI PIXEL -10 ~ 70 °C Industrial LCD Panel
1. Main Information:
The LQ035Q7DH06 is a 3.5 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -25 ~ 70°C . It's general features are summarized by Panelook in the following: Portrait type, With Touch, Transflective, WLED Backlight, U/D,L/R Reverse , AD-TFT (Advanced TFT), 2 in 1 FPC. Based on its features, Panelook recommend that this model be applied to Handheld & PDA etc
2. Sharp LQ035Q7DH06 Mechanical Details
| Pixel Features : | Resolution | 240(RGB)×320, QVGA | Dot Pitch(mm) | 0.0745×0.2235 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2235×0.2235 (H×V) [113PPI] |
| Mechanical Size : | Active Area(mm) | 53.64(H) × 71.52(V) | Bezel Area(mm) | 57.4(H) × 75.2(V) |
| Outline Dim.(mm) | 65(H) × 86.2(V) | Depth(mm) | 4.0±0.2 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 3:4 (H:V) | Orientation | Portrait type |
| Touch Panel : | Touch Points | 1 point | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - |
| Other Spec : | Weight | 45.0g (Typ.) | Treatment | Hard coating (2H) |
3. Sharp LQ035Q7DH06 Optical Details
| Basic Information : | Luminance(cd/m²) | 225 (Typ.) | Contrast Ratio | 80:1 (Typ.) (Transmissive) 3:1 (Typ.) (Reflective) |
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) | Display Mode | TN, Normally White, Transflective |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.300; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 7203K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 2.5/4.0% (Min./Typ.) |
4. Sharp LQ035Q7DH06 Backlight Details
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | 6S1P | Life Time | - |
| Lamp Electrical : | Voltage Supply | 19.2/21.6V (Typ./Max.) | Current Supply | 20/22mA (Typ./Max.) |
| Consumption | 384mW (Typ.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | No |
