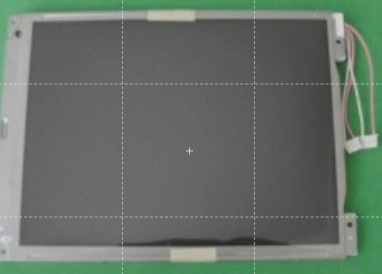

LQ104S1DG21 10.4 INCH SHARP TFT-LCD 800(RGB)×600, SVGA, 96PPI PIXEL -10 ~ 65 °C Industrial LCD Panel
1. Main Information:
LQ104S1DG21 is a 10.4" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 65°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, Life ≥ 50K hours, U/D,L/R Reverse, Matte , LAST SHIP DATE:8 July 2011. Based on its features, Panelook recommend that this model be applied to Industrial etc
2. Sharp LQ104S1DG21 Mechanical Features
| Panel Size : | 10.4 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 214.6×162.4 mm | 246.5×179.4 mm | 15.5 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Fixation : | Face mounting holes (2-Φ3.4, 2-3.4×4.4) |
| Other Features : | Panel Cover | Weight | Surface |
| - | 620g (Max.) | Antiglare, Hard coating (3H), Antireflection |
3. Sharp LQ104S1DG21 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 240/180mA (Typ.)(ICC) | 3.3/5.0V (Typ.)(VCC) | - |
| Voltage for Display Signals : | VIL≤0.3VCC; 0.7VCC≤VIH |
| Interface Features : | Position | Type | Interface |
| - | Connector | CMOS (1 ch, 6-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9MA-41P-1V | 1 pcs | 1.0 mm | 41 pins | DRGB-41P1C6B-010A |
4. Sharp LQ104S1DG21 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| CCFL | Edge light type (Top side) | Straight | 2 pcs | 50K(Min.) | Replaceable |
| CCFL Electrical : | Current Input | Voltage Input | Consumption |
| 3.5/6.0/7.0mA (Min./Typ./Max.) | 467V (Typ.) | 5.6W (Typ.) |
| Turn-on Voltage | Lamp Frequency |
| 1000/1450V (Max.)(Ta=+25/-10℃) | 35/60/70KHz (Min./Typ./Max.) |
| Interface Features : | Position | Type | CCFL Driver |
| - | Connector | No |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
