A090VW01 V3 AUO 9INCH 800×480RGB 250CD/M2 WLED TTL Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

A090VW01 V3 AUO 9INCH 800×480RGB 250CD/M2 WLED TTL Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

  • 1
  • 2

Brand Name : AUO

Model Number : A090VW01 V3

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Price : USD85

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2DAYS

Packaging Details : 30 pcs / box 9.0 Kgs 520×340×250 mm (L×W×H)

MODEL NUMBER : A090VW01 V3

BRAND : AUO

SIZE : 9INCH

RESOLUTION : 800×480 RGB

BRIGHTNESS : 250CD/M2

TEMPERATURE RANGE : Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

Contact Now

AUO A090VW01 V3 Application Features

Basic Information : Brand Model Type Model Alias
A090VW01 V3 a-Si TFT-LCD , LCM A090VW01 V.3
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
-10 ~ 60 °C -20 ~ 70 °C -

AUO A090VW01 V3 Mechanical Features

Panel Size : 9.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
800×480(RGB), WVGA RGB Horizontal Stripe 0.249×0.0765 mm 0.249×0.2295 mm [104PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
199.2×110.16 mm 201.2×112.16 mm 211.7×125 mm 4.6 (Typ.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type
Other Features : Panel Cover Weight Surface
- 220g (Typ.) Antiglare, Hard coating (3H)

AUO A090VW01 V3 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
250 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
70/70/55/70 (Typ.)(CR≥10) - 4/12 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
7351K 16.7M (6-bit + Hi-FRC) X:0.300; Y:0.320
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
46% 63% 48%
DCI-P3 Coverage Rec.2020 Coverage Remarks
48% 34% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.33/1.43 (Typ./Max.)(9 points)

AUO A090VW01 V3 Electronics Features

Power Consumption : 2.1W (Typ.)
Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)

AUO A090VW01 V3 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
3.7/29/9.2/0.5/0.5mA (Typ.)(IDD/IDPA/IDNA/IGH/IGL) 3.3/5.5/-5.5/10/-13V (Typ.)(VCC/VDPA/VDNA/VGH/VGL) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Position Type Interface
- FPC TTL (1 ch, 8-bit) + SPI
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
2 pcs 0.5 mm 34 pins

AUO A090VW01 V3 Backlight Features

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
WLED Edge light type Array 3S8P 10K(Min.) -
WLED Electrical : Current Input Voltage Input Consumption
200mA (Typ.) 9.6V (Typ.) 1.92W (Typ.)
Interface Features : Position Type WLED Driver
- Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
JST BHSR-02VS-1 1 pcs 3.5 mm 2 pins BLE-2PINS-AC

AUO A090VW01 V3 Packing Features

Package Carton : Amount Weight Carton Size
30 pcs / box 9.0 Kgs 520×340×250 mm (L×W×H)

A090VW01 V3 AUO 9INCH 800×480RGB 250CD/M2 WLED TTL Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY


Product Tags:

50% NTSC TFT LCD Panel



AUO LCD Display WLED LVDS


China A090VW01 V3 AUO 9INCH 800×480RGB 250CD/M2 WLED TTL Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY factory

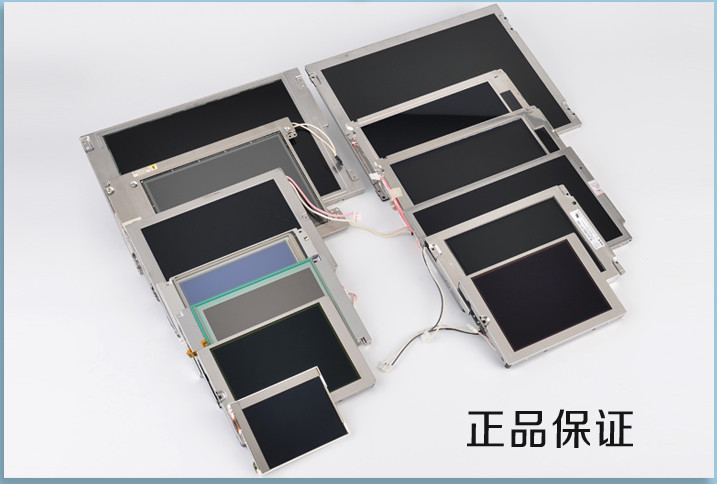

A090VW01 V3 AUO 9INCH 800×480RGB 250CD/M2 WLED TTL Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY Images
