LQ050 Series LQ050T1SX05 LQ050T1SX02
Sharp LQ050T1SX02 Mechanical Details
| Pixel Features : | Resolution | 1080(RGB)×1920, FHD | Dot Pitch(mm) | 0.019025×0.057075 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.057075×0.057075 (H×V) [445PPI] |
| Mechanical Size : | Active Area(mm) | 61.641(H) × 109.584(V) | Bezel Area(mm) | - |

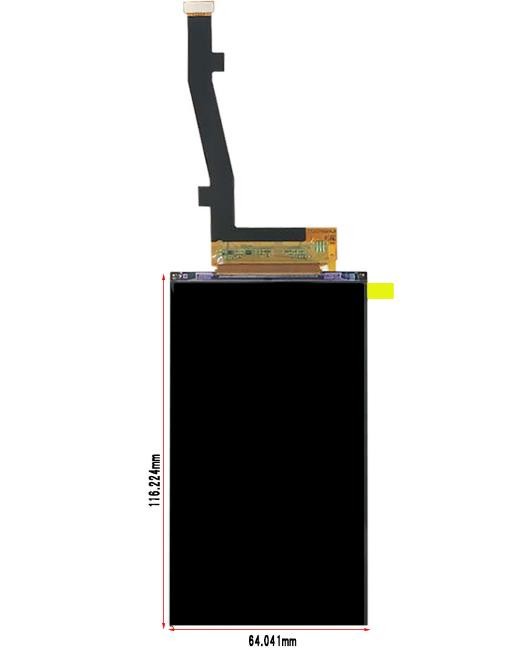

| Outline Dim.(mm) | 64.041(H) × 116.224(V) | Depth(mm) | 1.03±0.1 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 9:16 (H:V) | Orientation | Portrait type |
| Other Spec : | Weight | 13.1g | Treatment | - |
Sharp LQ050T1SX02 Optical Details
| Basic Information : | Luminance(cd/m²) | 460 (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) | Display Mode | New Mode2, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 35 (Max.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.300; Y:0.320 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 93% | sRGB | 100% coverage |
| Adobe RGB | 85% coverage | DCI-P3 | 92% coverage |
| Rec.2020 | 69% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ050T1SX02 Interface Details
| Signal Electrical : | Voltage Supply | 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) | Current Supply | 16/7.0/7.0mA (Typ.)(IOIDD/ISP/ISN) |
| Signal Type : | MIPI | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | BM20B(0.8)-30DP-0.4V(51) | 1 pcs | 30 pins | 0.4 mm | |
Sharp LQ050T1SX02 Backlight Details
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | 7S2P | Life Time | - |
| Lamp Electrical : | Voltage Supply | | Current Supply | 20mA (Typ.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | No |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|
5" LCM 1080×1920RGB 460cd/m² LQ050T1SX02 Sharp TFT LCD Display Images
|
