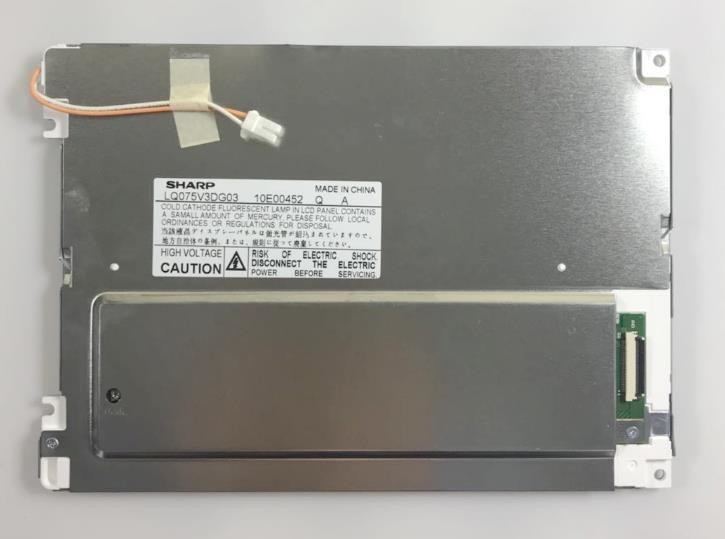

LQ075 Series LQ075V3DG03 LQ075V3DG01
Sharp LQ075V3DG03 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| SHARP | LQ075V3DG03 | a-Si TFT-LCD , LCM | - |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | -30 ~ 80 °C | -30 ~ 80 °C | - |
Sharp LQ075V3DG03 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| - | - | - |
| Best View on | Display Mode | Contrast Ratio |
| - | TN, Normally White, Transmissive | - |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K (6-bit) | - |
Sharp LQ075V3DG03 Mechanical Features
| Panel Size : | 7.5" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.237×0.237 [107PPI] | 0.079×0.237 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 151.68(H) × 113.76(V) | - | - | - |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) |
LQ075V3DG03 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 151.68(W)×113.76(H) mm. As a TN, Normally White, Transmissive LCM product, LQ075V3DG03 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.
