LQ040 Series LQ040Y3DX80B LQ040Y3DX80A LQ040Y3DX80
Sharp LQ040Y3DX80 Mechanical Details
| Pixel Features : | Pixel Format | 480(RGB)×800 [WVGA] | Dot Pitch | 0.036×0.108 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.108×0.108 mm (H×V) [235PPI] |
| Mechanical Size : | Display Area | 51.84×86.4 mm (H×V) | Bezel Area | - |
| Outline Dim. | 57.14×96.85 mm (H×V) | Outline Depth | 1.85±0.15 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:5 (H:V) | Shape Style | |
| Other Features : | Weight | 21.3g (Max.) | Surface | - |
Sharp LQ040Y3DX80 Optical Details
| Basic Information : | Brightness | 320 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | New Mode2, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 40 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | - |
Sharp LQ040Y3DX80 Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | - |
| Replacement | - | Amount | - | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 25.2±0.4V | Current Input | 20mA (Typ.) |
| Consumption | 504/840mW (Typ./Max.) |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Sharp LQ040Y3DX80 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) + SPI | Logic Voltage | 0≤VIL≤0.3IOVCC; 0.7IOVCC≤VIH≤IOVCC |
| Signal Electrical : | Voltage Input | 2.8/1.8V (Typ.)(VCI/IOVCC) | Current Input | - |
| Consumption | 75mW (Typ.) |
| Interface Features : | Type | FPC | Position | - | |
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| | | 0.3 mm | 51 pins | 1 pcs |
LQ040Y3DX80 supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 51.84(W)×86.4(H) mm, outline size of 57.14(W)×96.85(H)×2(D) mm, net weight of 21.3g (Max.). As a New Mode2, Normally Black, Transmissive LCM product, LQ040Y3DX80 can provides 320 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
Product Tags:
|
|

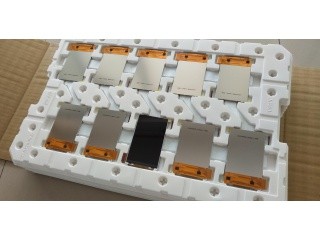

4" LCM 480×800RGB 320cd/m² LQ040Y3DX80 Sharp TFT LCD Display Images
|
