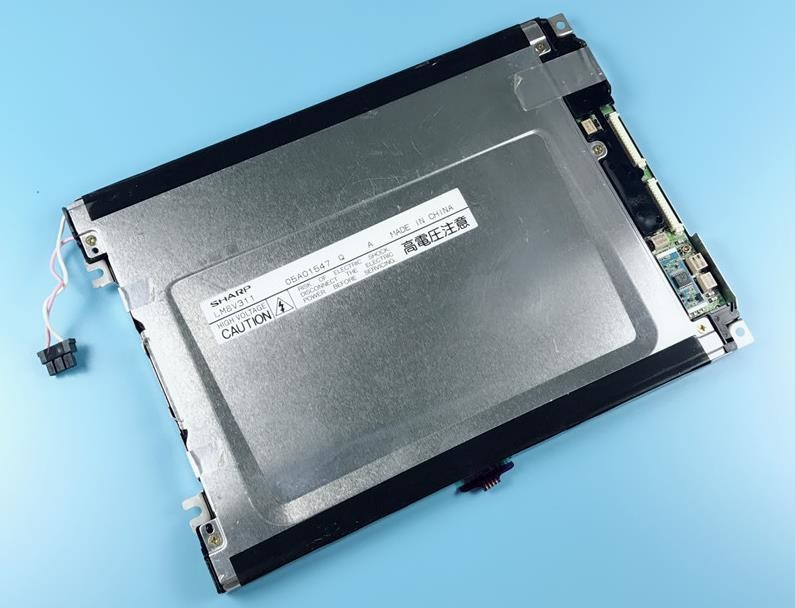

LM8V311 Sharp 7.7" LCM 640×480RGB 55cd/m² INDUSTRIAL LCD DISPLAY

Name: LM8V311 Sharp 77quot LCM 640480RGB 55cdm INDUSTRIAL LCD DISPLAY
Brand: Sharp
Price: 1 USD

China LM8V311 Sharp 7.7" LCM 640×480RGB 55cd/m² INDUSTRIAL LCD DISPLAY factory

Brand Name : Sharp

Model Number : LM8V311

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Model Name : LM8V311

Manufacturer : Sharp

Luminance : 55 cd/m² (Typ.)

Backlight : 1 pcs CCFL , 25K hours , No Driver

Screen Size : 7.7 inch

Pixel Number : 640(RGB)×480 (VGA) 103PPI

Signal Type : Parallel Data (8-bit) , 29 pins Connector

Max. Ratings : Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 40 °C

Contact Now

Sharp LM8V311 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :	SHARP	LM8V311	CSTN-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 40 °C	-25 ~ 60 °C	-

Sharp LM8V311 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	55 cd/m² (Typ.)	STN, Normally Black, Transmissive	30:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	-	30/30/15/30 (Typ.)(CR≥5)	270/80 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	8841K	Color	X:0.275; Y:0.330

Sharp LM8V311 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	CCFL	Edge light type (Top side)	25K(Min.)	1 pcs	Straight	-
CCFL Electrical :	Input Voltage		Input Current			Power Consumption
	490/539V (Typ./Max.)		3.0/5.0mA (Typ./Max.)			1.47W (Typ.)
	Operating Frequency		Startup Voltage
	30/70KHz (Min./Max.)		700/1050V (Max.)(Ta=+25/0℃)
Interface Features :	CCFL Driver State			Physical Type		Interface Position
Interface Features :	No			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	HONDA	QZ-19-3F01	1 pcs	3 pins		BLL-3PINS-LNH

Sharp LM8V311 Mechanical Features

Screen Size :	7.7"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.082×0.246 mm	0.246×0.246 mm [103PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	157.42×118.06 mm	-	197×142.5 mm	9.5 (Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	-	-	-	4-wire Resistive Touch, F/G
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	310g (Typ.)	-	-

Sharp LM8V311 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		40/60mA (Typ./Max.)			130/200mW (Typ./Max.)
Voltage for Display Signals :	0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel Data (8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
	molex	53261-1510	1 pcs	15 pins	1.25 mm
	molex	53261-1410	1 pcs	14 pins	1.25 mm

LM8V311 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 157.42(W)×118.06(H) mm, outline size of 197(W)×142.5(H) mm, net weight of 310g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM8V311 can provides 55 cd/m² display brightness 30:1 transimissive contrast ratio, 30/30/15/30 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 270/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 25K hours, external backlight driver is additionally needed.
