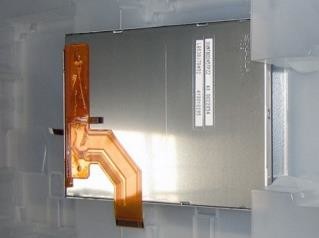

3.8" LCM 320×480RGB 80cd/m² LQ038J7DH52 Sharp TFT LCD Display

Name: 38quot LCM 320480RGB 80cdm LQ038J7DH52 Sharp TFT LCD Display
Brand: SHARP
Price: 1 USD

China 3.8" LCM 320×480RGB 80cd/m² LQ038J7DH52 Sharp TFT LCD Display factory

Brand Name : SHARP

Model Number : LQ038J7DH52

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : 100 pcs / box 9.50 Kgs 575×360×225 mm (L×W×H)

Model Name : LQ038J7DH52

Manufacturer : Sharp

Luminance : 80 cd/m² (Typ.)

Outline(mm) : 64.5 × 92.7 (H×V×D)

Screen Size : 3.8 inch

Pixel Number : 320(RGB)×480 (HVGA) 153PPI

Signal Type : Parallel RGB (1 ch, 6-bit) , FPC 39 pins

Max. Ratings : Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C

Contact Now

Sharp LQ038J7DH52 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	80 cd/m² (Typ.)	TN, Normally White, Transflective	60:1 (Typ.) (Transmissive) 2:1 (Typ.) (Reflective)
	Good View at	Viewing Angle	Response Time
	1 o'clock	55/55/55/55 (Typ.)(CR≥2)	20/35 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	7203K	262K (6-bit)	X:0.300; Y:0.330
Performance :	3D Technology	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable	2.8/4% (Min./Typ.)

Sharp LQ038J7DH52 Mechanical Features

Screen Size :	3.8"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	320(RGB)×480, HVGA	RGB Vertical Stripe	0.055×0.165 mm	0.165×0.165 mm [153PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	52.8×79.2 mm	-	64.5×92.7 mm	4.4 (Typ.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	2:3	Portrait type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	-	-	-	4-wire Resistive Touch
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	55.0g (Typ.)	-	Hard coating (3H)

Sharp LQ038J7DH52 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	-	-	-	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	14.4/16.0V (Typ./Max.)		15/20mA (Typ./Max.)			216mW (Typ.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			FPC		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail			1 pcs	4 pins		BLE-4PINS-AACC

Sharp LQ038J7DH52 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)		5.5/2.9/0.1/-0.1mA (Typ.)(ISHA/ISHD/IDD/IEE)			-
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel RGB (1 ch, 6-bit)			FPC		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :			1 pcs	39 pins

LQ038J7DH52 supports display 320(RGB)×480 (HVGA) with aspect ratio of 2:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 52.8(W)×79.2(H) mm, outline size of 64.5(W)×92.7(H) mm, with surface treament of Hard coating (3H), net weight of 55.0g (Typ.). As a TN, Normally White, Transflective LCM product, LQ038J7DH52 can provides 80 cd/m² display brightness 60:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 55/55/55/55 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 1 o'clock , and response time of 20/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
