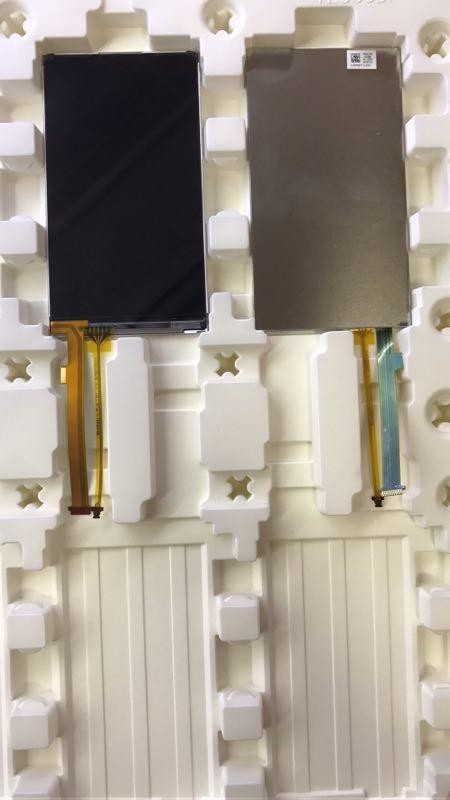

LS043T1LE01 Sharp 4.3" LCM 540×960RGB 450cd/m² INDUSTRIAL LCD DISPLAY

Name: LS043T1LE01 Sharp 43quot LCM 540960RGB 450cdm INDUSTRIAL LCD DISPLAY
Brand: SHARP
Price: 1 USD

China LS043T1LE01 Sharp 4.3" LCM 540×960RGB 450cd/m² INDUSTRIAL LCD DISPLAY factory

Brand Name : SHARP

Model Number : LS043T1LE01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : 240 pcs / box 12.3 Kgs 580×365×235 mm (L×W×H)

Panel Brand : Sharp

Panel Model : LS043T1LE01

Brightness : 450 cd/m² (Typ.)

Panel Size : 4.3"

Lamp Type : 10S1P WLED , Without Driver

Resolution : 540(RGB)×960, qHD, 256PPI

Environment : Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

Signal Interface : MDDI/MIPI , 23 pins FPC

Contact Now

Sharp LS043T1LE01 Mechanical Features

Panel Size :	4.3"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	540(RGB)×960 [qHD]	RGB Vertical Stripe	0.099×0.099 [256PPI]	0.033×0.099
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	53.46(H) × 95.04(V)	-	58.54(H) × 105.7(V)	2.48±0.12 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Portrait type	9:16 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	33.0g	-	Hard coating (3H)

Sharp LS043T1LE01 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	450 (Typ.)	80/80/80/80 (Typ.)(CR≥10)	35 (Typ.)(Tr+Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	ASV, Normally Black, Transmissive	800 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6737K	16.7M (8-bit)	X:0.310; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	70%	91%	71%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	73%	52%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.25/1.33 (Typ./Max.)(9 points)
Performance :	3D Tech	Sunlight Visibility	Reflectance
Performance :	3D (Naked eye - Parallax Barrier)	No	-

Sharp LS043T1LE01 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	1.8/3.2V (Typ.)(IOVDD/AVDD)		-			-
Interface Features :	Position	Signal				Type
Interface Features :	-	MDDI/MIPI				FPC
FPC Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
FPC Detail :			0.3 mm	23 pins	1 pcs

Sharp LS043T1LE01 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	10S1P	1 string	-	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	30V (Typ.)		20mA (Typ.)			600mW (Typ.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Included in panel signal interface

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
