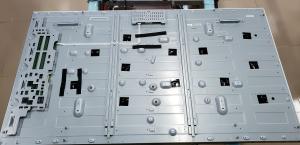

80PPI 55" 3840x2160 Square Tft Screen 500cd/m2 LC550EGG-FLM1 89/89/89/89 (Typ.)(CR≥10)

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

80PPI 55" 3840x2160 Square Tft Screen 500cd/m2 LC550EGG-FLM1 89/89/89/89 (Typ.)(CR≥10)

Brand Name : LG DISPLAY

Model Number : LC550EGG-FLM1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LC550EGG-FLM1

BRAND : LG DISPLAY

SIZE : 55 inch

BRIGHTNESS : 500CD/M2

Lamp Type : WLED

RESOLUTION : 3840(3)×2160 [UHD] 80PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

LG Display LC550EGG-FLM1 Application Features

Basic Information : Brand Name Model Name Type Model Alias
LC550EGG-FLM1 a-Si TFT-LCD , LCM LC550EGG (FL)(M1)
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
0 ~ 50 °C -20 ~ 60 °C

LG Display LC550EGG-FLM1 Mechanical Features

Screen Size : 55"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
3840(3)×2160, UHD RGBW Vertical Stripe - 0.315×0.315 mm [80PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
1209.6×680.4 mm 1213.6×684.9 mm 1236.92×712.51 mm 25.71 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
12.0/12.6Kgs (Typ./Max.) - Antiglare (Haze 3%), Hard coating (2H)

LG Display LC550EGG-FLM1 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
500 cd/m² (Typ.) IPS, Normally Black, Transmissive 1200:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Min.)(CR≥10) 8/10 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
9966K 1.07B (8-bit + Dithering) X:0.281; Y:0.288
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
76% 99% 77%
DCI-P3 Coverage Rec.2020 Coverage Remarks
79% 57% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.54 (Max.)(9 points)

LG Display LC550EGG-FLM1 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type 30K(Min.) - - -
WLED Electrical : Input Voltage Input Current Power Consumption
106.6±7.2V 110±5.5mA (Typ.) 70.3/75.1W (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
UJU HS100-L08N-N62 1 pcs 8 pins 1.0 mm BLE-8PINS-CCCNNNNA
UJU HS100-L08N-N62-A 1 pcs 8 pins 1.0 mm BLE-8PINS-ANNNNCCC

LG Display LC550EGG-FLM1 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
12.7V (Typ.)(VLCD) 0.85/1.11A (Typ./Max.) 10.8/14.04W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
EPI Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
HRS TF06L-60S-0.5SH 2 pcs 60 pins 0.5 mm

LG Display LC550EGG-FLM1 Packing Features

Package Box : Amount Weight Size (L×W×H)
18 pcs / box - 1440×1140×960 mm (L×W×H)


Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
