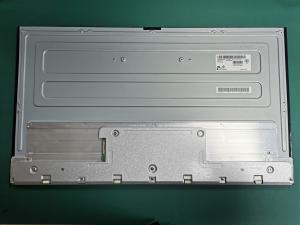

LM270WQB-SSA1 27.0" 2560x1440 450cd/m2 89/89/89/89 INDUSTRIAL LCD DISPLAY

Name: LM270WQBSSA1 270quot 2560x1440 450cdm2 89898989 INDUSTRIAL LCD DISPLAY
Brand: LG DISPLAY
Price: 1 USD

China LM270WQB-SSA1 27.0" 2560x1440 450cd/m2 89/89/89/89 INDUSTRIAL LCD DISPLAY factory

Brand Name : LG DISPLAY

Model Number : LM270WQB-SSA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM270WQB-SSA1

BRAND : LG DISPLAY

SIZE : 27.0INCH

BRIGHTNESS : 450CD/M2

Lamp Type : WLED

RESOLUTION : 2560(RGB)×1440 (Quad-HD) 108PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM270WQB-SSA1 Application Details

Basic Detail :	Manufacturer		Model Name	LM270WQB-SSA1
	Panel Type	Oxide TFT-LCD , LCM	Another Name	LM270WQB (SS)(A1)
	Panel Size	27.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LM270WQB-SSA1 Optical Details

Basic Information :	Luminance	450 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	5 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	68.72B (8-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	93%	sRGB	100% coverage
	Adobe RGB	87% coverage	DCI-P3	96% coverage
	Rec.2020	70% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM270WQB-SSA1 Mechanical Details

Pixel Features :	Number of Pixel	2560(RGB)×1440 [Quad-HD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0777×0.2331 mm	Pixel Pitch(W×H)	0.2331×0.2331 mm [108PPI]
Physical Size :	Active Viewing	596.74(W)×335.66(H) mm	Overall Dim.	603.8(W)×347.45(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	15.85 (Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style	4-side borderless
Fixation :	Rear mounting holes
Other Detail :	Mass	3.23/3.39Kgs (Typ./Max.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM270WQB-SSA1 Interface Details

Signal Electrical :	Input Current	570/715mA (Typ./Max.)		Input Voltage	10.0V (Typ.)
Signal Electrical :	Consumption	5.7/7.15W (Typ./Max.)	Signal Interface	eDP (2 ch, 4 Lanes), HBR2 (5.4G/lane)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	I-PEX	20525-060E-01	1 pcs	0.4 mm	60 pins

LG Display LM270WQB-SSA1 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type (Bottom side)
Lamp Features:	Exchange	-	Amount	-	Life	30K(Min.) (Hours)
Lamp Electrical :	Input Current	70/75mA (Typ./Max.)		Input Voltage	11.4±0.4V
Lamp Electrical :	Consumption	25.5/26.4W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	YEONHO	10035WS-H10D	4 pcs	1.0 mm	10 pins	BLE-10PINS-CCCCAACCCC
Backlight Driver :	No

LG Display LM270WQB-SSA1 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	9 pcs / box	710×468×365 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
