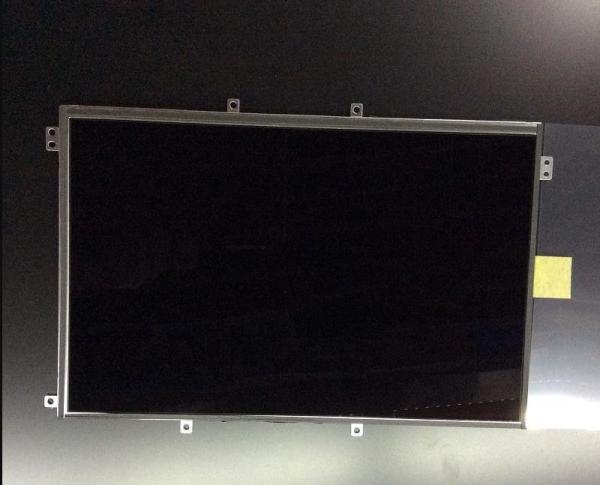

360cd/m2 149PPI Square Tft Display 10.1" 1280×800 LP101WX2-SLA1

Name: 360cdm2 149PPI Square Tft Display 101quot 1280800 LP101WX2SLA1
Brand: LG DISPLAY
Price: 1 USD

China 360cd/m2 149PPI Square Tft Display 10.1" 1280×800 LP101WX2-SLA1 factory

Brand Name : LG DISPLAY

Model Number : LP101WX2-SLA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP101WX2-SLA1

BRAND : LG DISPLAY

SIZE : 10.1INCH

BRIGHTNESS : 360CD/M2

Lamp Type : WLED

RESOLUTION : 1280(RGB)×800 [WXGA] 149PPI

VIEWING ANGLEG : 80/80/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP101WX2-SLA1 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LP101WX2-SLA1	a-Si TFT-LCD , Assembly	LP101WX2 (SL)(A1), LGD0370
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP101WX2-SLA1 Mechanical Features

Screen Size :	10.1"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1280(RGB)×800, WXGA	RGB Vertical Stripe	0.0565×0.1695 mm	0.1695×0.1695 mm [149PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	216.96×135.6 mm	-	257.2×175.4 mm	4.05/5.9 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:10	Landscape type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	10 points	I²C	With touch controller	PCAP
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	270g (Typ.)	With Cover Lens	Anti Fingerprint

LG Display LP101WX2-SLA1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	360 cd/m² (Typ.)	IPS, Normally Black, Transmissive	500:1 (Min.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	80/80/80/80 (Min.)(CR≥10)	35 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	49%	68%	51%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	51%	36%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.40/1.60 (Typ./Max.)(13 points)

LG Display LP101WX2-SLA1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	15K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	3.2/4.2V (Min./Max.)		770/797mA (Typ./Max.)			2.85/2.95W (Typ./Max.)

LG Display LP101WX2-SLA1 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		157/181mA (Typ./Max.)			0.52/0.60W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (1 ch, 8-bit)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	UJU	IS050-L40B-C10	1 pcs	40 pins	0.5 mm

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
