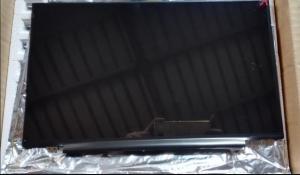

300cd/m2 14.0in 157PPI Square Tft Screen LP140WF3-SPD1 1920×1080

Name: 300cdm2 140in 157PPI Square Tft Screen LP140WF3SPD1 19201080
Brand: LG DISPLAY
Price: 1 USD

China 300cd/m2 14.0in 157PPI Square Tft Screen LP140WF3-SPD1 1920×1080 factory

Brand Name : LG DISPLAY

Model Number : LP140WF3-SPD1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP140WF3-SPD1

BRAND : LG DISPLAY

SIZE : 14.0 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 [FHD] 157PPI

VIEWING ANGLEG : 80/80/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP140WF3-SPD1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LP140WF3-SPD1	a-Si TFT-LCD , LCM	LP140WF3 (SP)(D1), LGD046D
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP140WF3-SPD1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	300 (Typ.)	80/80/80/80 (Min.)(CR≥10)	25 (Typ.)(Tr+Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	AH-IPS, Normally Black, Transmissive	700 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	73%	92%	72%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.43/1.67 (Typ./Max.)(13 points)

LG Display LP140WF3-SPD1 Mechanical Features

Panel Size :	14.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1920(RGB)×1080 [FHD]	RGB Vertical Stripe	0.1611×0.1611 [157PPI]	0.0537×0.1611
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	309.31(H) × 173.99(V)	312.4(H) × 177.5(V)	320.4(H) × 205.1(V)	2.8/3.0 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	Slim (PCBA Flat, T≤3.2mm)
Mounting :	Face mounting holes (8 pcs) on up, down slugs
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	290/300g (Typ./Max.)	-	Antiglare

LG Display LP140WF3-SPD1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	-	-	15K(Min.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Included in panel signal interface
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	5.0/12.0/21.0V (Min./Typ./Max.)		310/321mA (Typ./Max.)			3.7/3.8W (Typ./Max.)

LG Display LP140WF3-SPD1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		280/322mA (Typ./Max.)			0.9/1.1W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (2 Lanes)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	HRS	KN38-30S-0.5H	0.5 mm	30 pins	1 pcs	EDP-30P2L-020A

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
